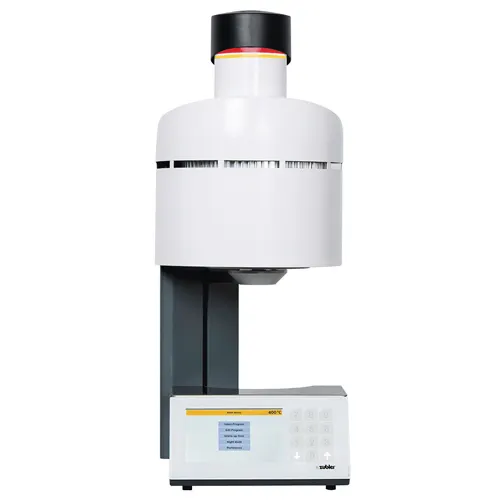

Zubler Fire and Press Furnace – 330e Zr + Vakuum Pump

The Zubler Fire and Press Furnace 330e ZR is a high-end dental pressing and firing furnace designed to deliver exceptional precision for lithium disilicate pressing and ceramic firing workflows. Developed for modern dental laboratories, it combines intelligent pressing technology, advanced temperature control, and automated process management to achieve consistent, high-quality restorations.

Designed primarily as a pressing furnace but equally powerful as a firing oven, the 330.e ZR features fully automatic dynamic pressing power control. The furnace continuously adjusts pressing force during the workflow based on object geometry, material volume, and flow behavior. This prevents premature termination of the pressing process, reduces investment ring stress, and ensures highly precise pressing results.

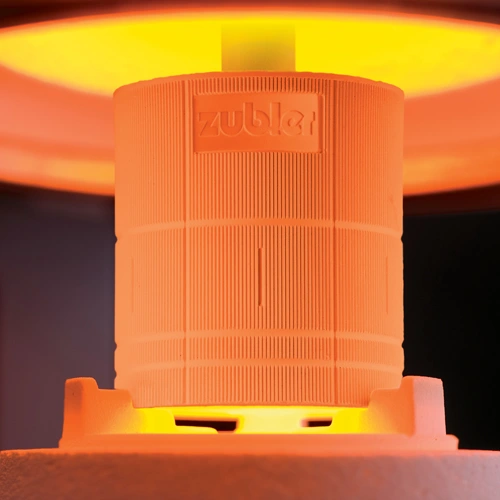

At the core of the system is the ADVANCED PRESS™ process, which ensures homogeneous temperature distribution from the furnace sensor to the interior of the press ring. This minimizes reaction layers, produces smooth surfaces, shortens pressing times, and significantly reduces finishing effort — particularly when processing lithium disilicate ceramics.

The integrated TTC (Time-Temperature-Cooling) mode enables controlled linear cooling between 5 °C/min and 45 °C/min, reducing the risk of cracks and chipping during ceramic firing on zirconia frameworks. Complementing this, the Z-Dry Mode uses a virtual sensor to maintain a constant pre-drying temperature of approximately 150 °C, preventing bubbles and microcracks while improving workflow efficiency.

A large full-touch display with intuitive menu navigation allows easy creation, editing, and management of programs. Programs can be organized in folders similar to a computer interface, and parameters can be adjusted even during a running program. USB connectivity provides access to downloadable programs, software updates, and extended service features.

With intelligent software-controlled press valves, automatic pressure regulation, and optimized firing chamber design, the VARIO PRESS 330.e ZR delivers predictable aesthetic outcomes, faster production cycles, and reliable daily performance.

Key Features of  Zubler Fire and Press Furnace 330e ZR

• Combined pressing and firing furnace for dental ceramics

• Fully automatic dynamic pressing power control

• ADVANCED PRESS™ technology for homogeneous ring temperature

• TTC linear cooling (5–45 °C/min) to reduce cracks and chipping

• Z-Dry Mode for controlled and time-saving pre-drying

• Intelligent press valve control without manual pressure adjustment

• Large full-touch display with intuitive program management

• USB connectivity for programs and software updates

• Optimized for lithium disilicate and ceramic restorations

Technical Highlights of  Zubler Fire and Press Furnace 330e ZR

• Homogeneous temperature distribution inside the press ring (≈ max. 4 °C difference)

• Reduced reaction layer and smoother restoration surfaces

• Automatic adaptation to geometry, thickness, and flow speed

• Parameter adjustment possible during running programs

• Designed for modern digital and conventional lab workflows

Ideal Applications of  Zubler Fire and Press Furnace 330e ZR

• Lithium disilicate pressing

• High-aesthetic ceramic restorations

• Ceramic firing on zirconia frameworks

• Efficient daily production with predictable results

Other Furnaces from Zubler on our website are Zubler Sinter Furnace S430, Zubler Firing Furnace 230zr.

Made in Germany, Zubler Geräte Bau GmbH
