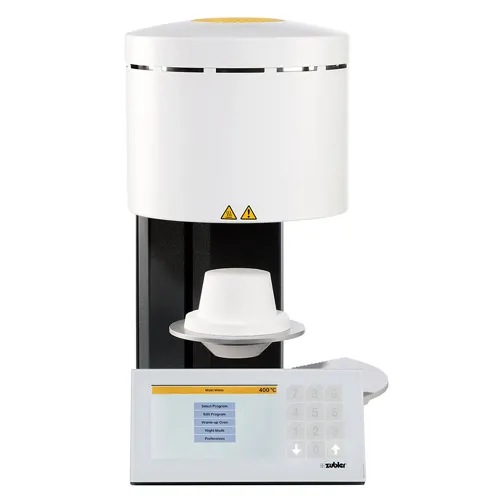

Zubler Firing Furnace – 230Zr + Vakuum Pump

The Zubler Firing Furnace 230Zr is an advanced dental ceramic furnace designed to deliver highly precise and consistent firing results for modern ceramic and zirconia restorations. Developed for today’s dental laboratories, the furnace combines innovative firing chamber design, intelligent software, and powerful temperature control to ensure predictable aesthetic outcomes.

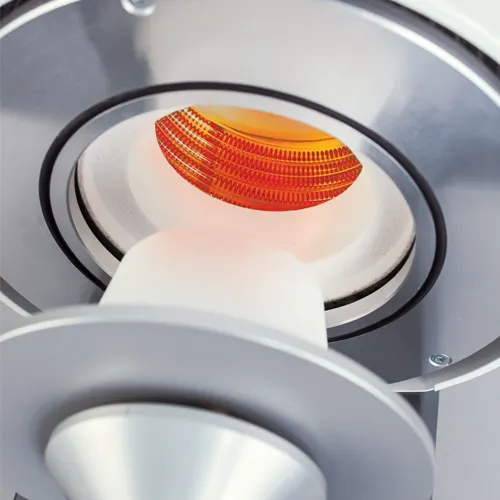

At the core of the 230Zr is the unique Z-120 firing chamber technology, featuring a 120 mm inner diameter that ensures outstanding temperature homogeneity across the entire firing tray. This configuration allows identical firing results regardless of object position or quantity, improving workflow efficiency and restoration quality.

The integrated TTC Mode enables active linear cooling between 5 °C/min and 45 °C/min, significantly reducing the risk of chipping, microfractures, and cracks when firing ceramics on zirconia frameworks. Complementing this, the Z-Dry Mode uses a virtual sensor to automatically control the lift position and maintain a constant pre-drying temperature, ensuring accurate drying while saving valuable laboratory time.

With up to 500 individually programmable programs, a full-touch display with intuitive navigation, and USB connectivity for program downloads and software updates, the furnace supports flexible workflows and long-term productivity. The built-in Power-Fail-Control (PFC) ensures operational safety by resuming the firing process after power interruptions.

Designed specifically for new dental ceramic materials, the Zubler Firing Furnace 230Zr provides reliable performance, consistent aesthetics, and efficient daily operation for modern digital and conventional laboratories.

Key Features of Zubler Firing Furnace 230Zr

• Z-120 firing chamber for superior temperature homogeneity

• TTC Mode for controlled linear cooling of zirconia ceramics

• Z-Dry Mode for precise and time-saving pre-drying

• Up to 500 individually programmable firing programs

• Full touch display with intuitive menu navigation

• USB port for program downloads and software updates

• Power-Fail-Control (PFC) for process safety

• Optimized for modern dental ceramic materials

Technical Highlights

• 120 mm firing chamber inner diameter for uniform results

• Linear cooling control (5–45 °C/min)

• Intelligent lift control for consistent pre-dry temperature

• Designed for high precision ceramic firing on zirconia

Ideal Applications

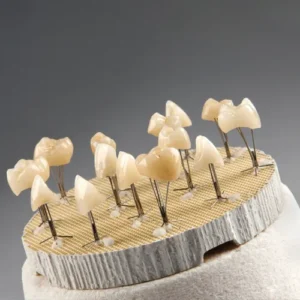

• Ceramic firing on zirconia frameworks

• Glazing and staining procedures

• Lithium disilicate crystallization

• High-aesthetic dental restorations

Other Furnaces from Zubler on our website are Zubler Sinter Furnace S430, Zubler Press Furnace 330.ezr.

Made in Germany, Zubler Geräte Bau GmbH
